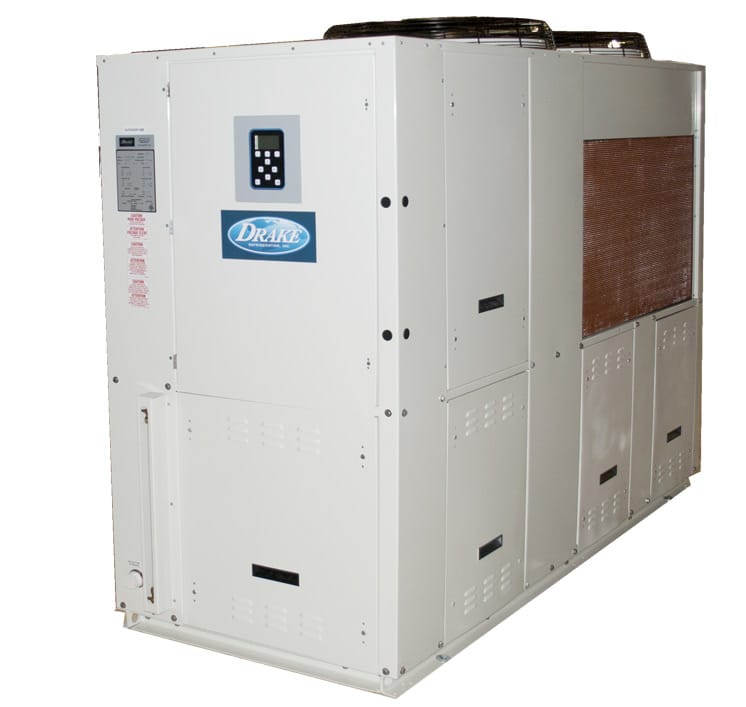

Packaged Air-Cooled Chillers

Air-cooled chillers use ambient air to cool the refrigerant. These cost-effective and low-maintenance systems boast energy-efficient operation and occupy less interior space than water-cooled systems.

Air-cooled chillers are well-suited for water-sensitive areas, and the cooling process doesn’t modify the ambient humidity or temperature. They are stand-alone units and do not require any additional equipment to function.

Ambient air cooling
Cost-effective
Low maintenance
Energy efficient operation
Occupy less interior space
Stand-alone unit

With decades of experience and a robust selection of engineered and factory-tested packaged air-cooled chillers, we are your trusted industrial process cooling source.

Our custom-capable product lines are designed with many performance- and efficiency-enhancing standard features. Rated NEMA 3R electrical for indoor or outdoor use, our packaged air-cooled chiller lines come with a full refrigerant charge for efficient and hassle-free installation. Most units offer several customization options, including a 4-year extended warranty, stainless steel pumps, electrical and fluid piping upgrades, coastal/hazardous environment coating, low ambient protection, and more.

Browse our product lines below to learn more and request a quote.

Drake Refrigeration
Units Nomenclature

Product Lines

Value line single circuit scroll packaged air-cooled chillers

Models

1S-10S

Type

Air-cooled

Circuit

Single

Compressor

Scroll

1.5-10

The single circuit scroll packaged air-cooled chiller options in our Value Line feature a long-lasting Copeland scroll compressor and are specifically engineered for cost-effective performance. Designed for use with R407C and R404A refrigerant, these factory-tested units feature compressor operation temperature suction ranges of 25° to 55° F and -10° F to 45° F. The value line of single circuit packaged air-cooled chillers features tank capacities of 6 to 31 gallons, depending on the unit.

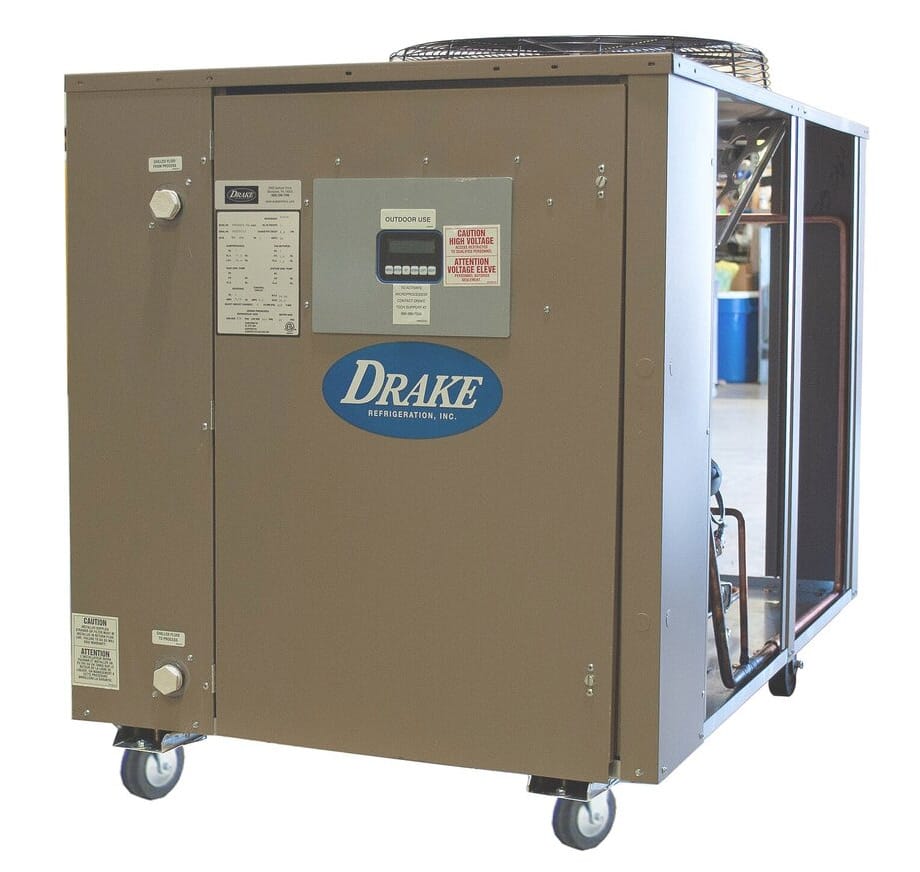

Single Circuit Scroll Packaged Air-Cooled Chillers

Models

12S-380S

Type

Air-cooled

Circuit

Single

Compressor

Scroll

1.5-30

Our single circuit scroll packaged air-cooled chiller options are available in various sizes to meet your specific application requirements. With an industry-leading Copeland scroll compressor and a hot gas bypass to prevent evaporator freeze-ups, these units are designed for exceptional longevity. Count on our single circuit scroll packaged air-cooled chillers to deliver high performance and efficiency, making them ideal for many industrial process cooling needs.

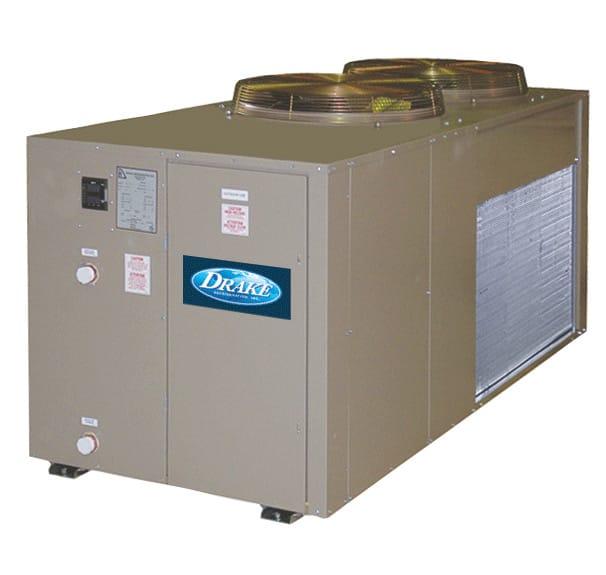

Single Circuit Digital Scroll Packaged Air-Cooled Chillers

Models

36S-90S

Type

Air-cooled

Circuit

Single

Compressor

Digital scroll

4-10

Our single circuit digital scroll packaged air-cooled chiller options feature units that range from 4 to 10 HP. They are engineered with the industry-leading and long-lasting Copeland scroll compressor with digital technology for precision temperature control and modulation down to 40% capacity.

Dual Circuit Scroll Packaged Air-Cooled Chillers

Models

72D-760D

Type

Air-cooled

Circuit

Dual

Compressor

Scroll

8-60

Our dual circuit scroll packaged air-cooled chiller options range 8 to 60 HP. Engineered with the industry-leading and long-lasting Copeland scroll compressor, these industrial process chillers boast excellent performance and efficiency. Thanks to the rigorous factory testing process, these air-cooled chillers are engineered to arrive in working order and meet your performance criteria.

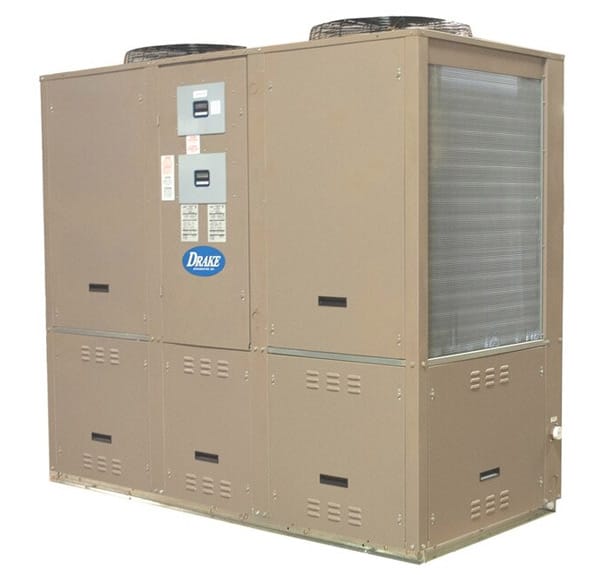

Dual Circuit Digital Scroll Packaged Air-Cooled Chiller

Models

72D-360D

Type

Air-cooled

Circuit

Dual

Compressor

Digital scroll

8-30

Ranging from 8 to 30 HP, choose our dual circuit digital scroll packaged air-cooled chillers for superior performance and reliability. With an industry-leading and long-lasting Copeland compressor with digital technology, expect precision temperature control and the benefit of modulation down to 20%. Our factory-tested units and fully charged refrigerant contribute to a hassle-free and efficient installation process.

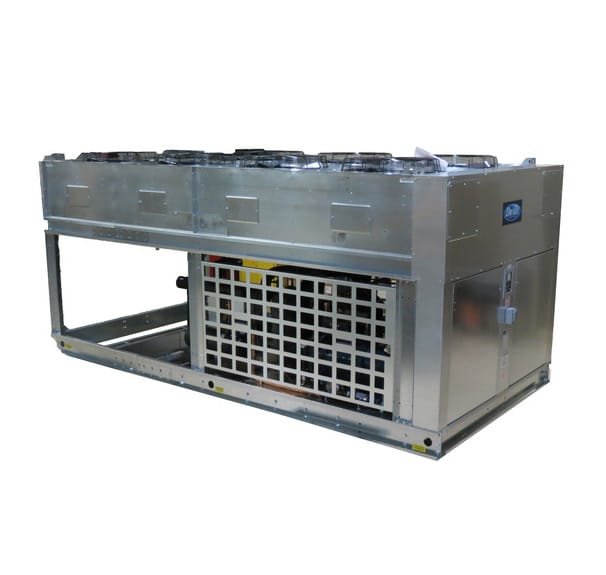

Single Circuit Semi-Hermetic Packaged Air-Cooled Chillers

Models

100S-500S

Type

Air-cooled

Circuit

Single

Compressor

Semi-hermetic

10-50

Featuring a long-lasting and rebuildable Copeland or Bitzer semi-hermetic compressor, our single circuit semi-hermetic packaged air-cooled chillers range from 10 to 50 HP. These powerful and efficient industrial process chillers feature variable capacity control for a soft start and stepped capacity control from 50-100%. The compressor vibration eliminator reduces noise, making them ideal for sound-sensitive environments.

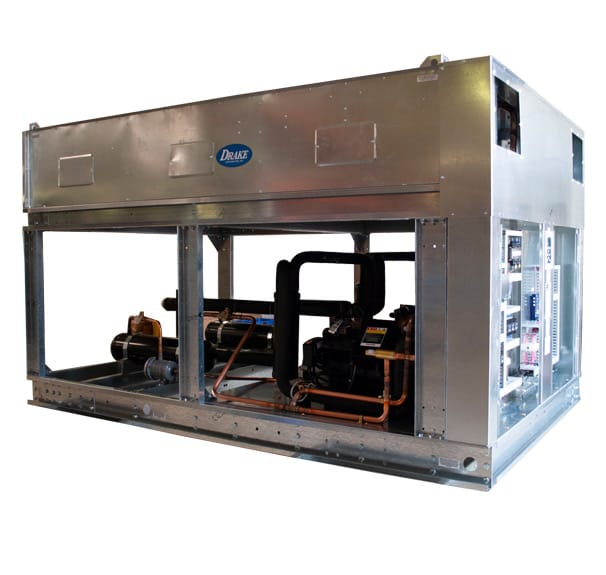

Dual Circuit Semi-Hermetic Packaged Air-Cooled Chillers

Models

150-1200D

Type

Air-cooled

Circuit

Dual

Compressor

Semi-hermetic

15-100

Our dual circuit semi-hermetic packaged air-cooled chillers are available in units ranging from 15-100 HP. Built with a long-lasting and industry-leading Copeland or Bitzer semi-hermetic compressor, these factory-tested dual circuit industrial process chillers are available with standard features, including variable capacity control for soft start and stepped capacity control from 25-100%.

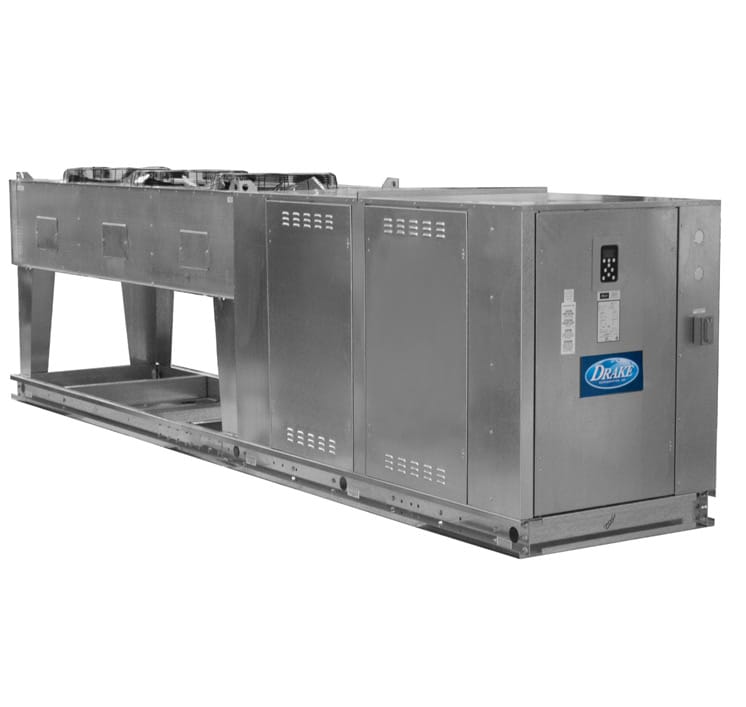

Multi-Circuit Scroll Packaged Air-Cooled Chillers

Models

150M-250M

Type

Air-cooled

Circuit

Multi

Compressor

Scroll

16.5-25

Our line of multi-circuit scroll packaged air-cooled chillers range from 16.5-25 HP. With an industry-leading and long-lasting Copeland scroll compressor, these factory-tested multi-circuit industrial process chillers deliver superior industrial process cooling performance. From a compressor crankcase heater to a hot gas bypass, these units include many standard features to help prevent damage to extend the life of your air-cooled chiller.

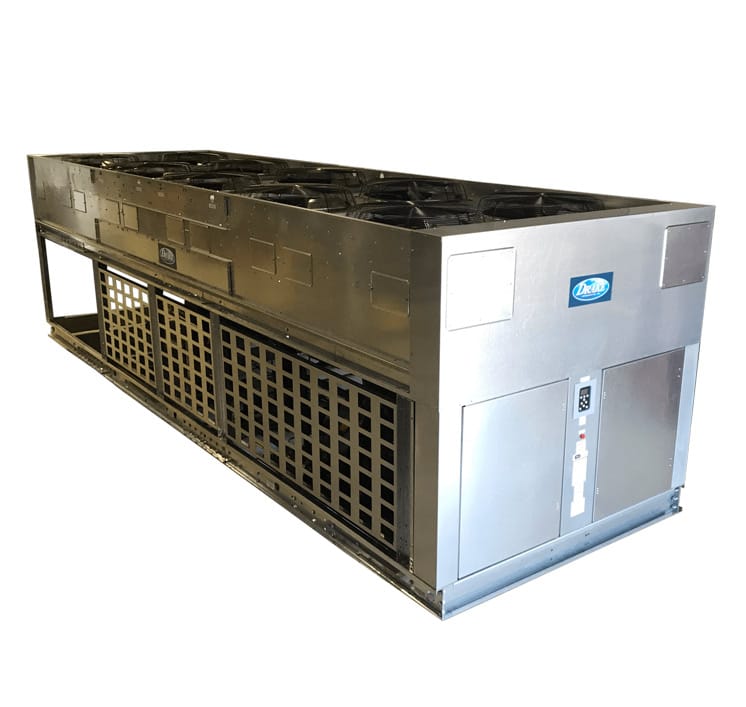

Dual Circuit Screw Packaged Air-Cooled Chillers

Models

800D-T-2000D-T

Type

Air-cooled

Circuit

Dual

Compressor

Screw

80-200

Ranging from 80-200 HP, our dual circuit screw packaged air-cooled chillers feature some of the most powerful and efficient process cooling capabilities. Engineered with a robust, long-lasting, and rebuildable Hanbell screw compressor, these factory-tested units come with a 3-year standard warranty. Variable capacity control, noise-reducing compression vibration eliminators, and energy-efficient electronic expansion valves (EEVs) are just a few standard features that give these packaged air-cooled chillers an edge.

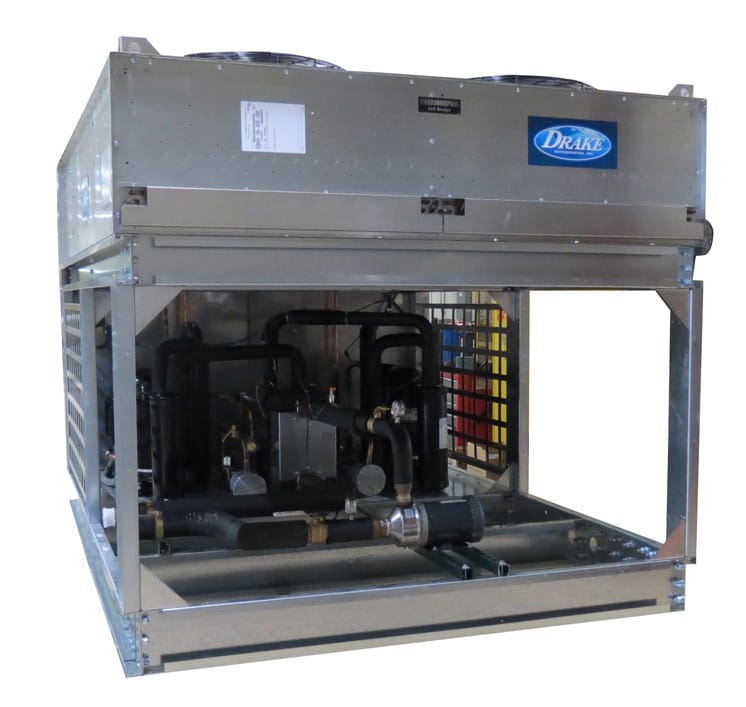

Tandem Circuit Scroll Packaged Air-Cooled Chillers

Models

PAC280Q-PAC1280Q

Type

Air-cooled

Circuit

Tandem

Compressor

Scroll

28-120

Our tandem circuit scroll packaged air-cooled chillers have a powerful range of 28-120 HP. Featuring a long-lasting and industry-leading Copeland tandem scroll compressor, expect these units to deliver exceptional performance and longevity. With capacity control ranging from 25-100%, tandem circuit scroll packaged air-cooled process chillers allow for tight control on varying loads while the compression vibration eliminator reduces noise.

WHY CHOOSE US

Since 1972, we’ve manufactured reliable, durable, and cost-effective industrial process chillers for various industries, including medical, dairy, food processing, brewery, refrigeration, low-temp, and industrial.

Choose us for Packaged Air-Cooled Chillers

With a vast arsenal of tools and configurations, we have the knowledge and brainpower to tackle even the most sophisticated cooling need. From varying loads and narrow temperature bands to high and low ambient conditions, we build systems that focus on one goal: to keep your equipment running.

40+ years of experience
Proven 99.4% uptime rate
Custom solutions
Tight temperature control
Proudly manufactured in the USA in Bensalem, PA
Short lead times
Customer and technical support

Where to get our products

Our products are available through most refrigeration wholesalers so that you can turn to suppliers and contractors you know and trust. With representatives throughout the United States, you can get the support you need during all stages of the process.

No matter how challenging your unique cooling need, our product line has what it takes to keep your processes going strong. Contact your trusted refrigeration wholesaler or contact us.
