Industry Served

Comfort Cooling

Overview

Drake can provide comfort cooling in tight spaces or over long distances without compromising quality.

Comfort cooling chillers eliminate the need for difficult refrigerant plumbing – all the refrigerant is contained entirely inside the chiller housing. Inexpensive, easy to use, and environmentally safe fluids plumb over long distances and multiple air handlers. Both standard air- and water-cooled chillers deliver the comfort cooling capabilities of air handlers, fan coils, and more. We focus on making chillers with single-phase power, capable of handling over 10 tons of cooling.

These comfort cooling chillers are designed especially for large residences, such as apartment complexes, condominium communities, and mansions. Commercial applications include casinos and even marine applications. We offer options that are not available in other comfort cooling chillers such as custom sizes, custom dimensions, low ambient protection, and redundancy options. Here, we’re keeping you comfortable and cool without all that refrigerant!

Brochure

Download our Comfort Cooling Chillers Brochure

Comfort cooling chiller applications

Our robust line of custom-capable comfort cooling chillers is designed for large residences and some commercial applications, including:

Apartment complexes
Condominium communities
Mansions
Casinos
Data centers
Gyms
Warehouses
Marine settings

Are you interested in a comfort cooling chiller for your large residence or commercial environment? Let us know, and we’ll engineer an affordable solution to meet your requirements.

Types of comfort cooling chillers

Choose from air-cooled and water-cooled comfort cooling chillers, each offering a unique set of advantages to consider for your application and budget.

Air-cooled:

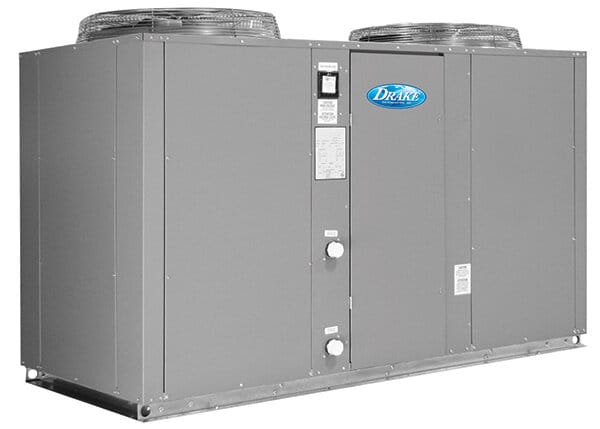

Our air-cooled comfort cooling chillers use ambient air to cool your environment. These cost-effective systems are energy-efficient, take up minimal space, and are relatively quick and easy to install.

Water-cooled:

Our water-cooled comfort cooling chillers utilize water from an external cooling tower to keep your environment cool. The benefits of these cooling systems include a long life span, quiet operation, and energy-efficiency.

Which chiller is right for you? Contact our team to learn more about the differences between air- and water-cooled comfort cooling chillers.

Our comfort cooling chiller product line

Scroll

Air- and water-cooled
1 – 60 hp

Semi-Hermetic

Air- and water-cooled
10 – 100 hp

Screw

Air- and water-cooled
80 – 214 hp

Remote condenser systems
Choose to have your condenser and compressor installed in different areas for even more convenience and versatility.

Tank & pump packages
Our option of either polyethylene or stainless-steel tanks and tank and pump packages ranging from 30 – 30,000-gallon capacity provides even more flexibility. Choose from onboard or remote packages.

Top food processing chillers

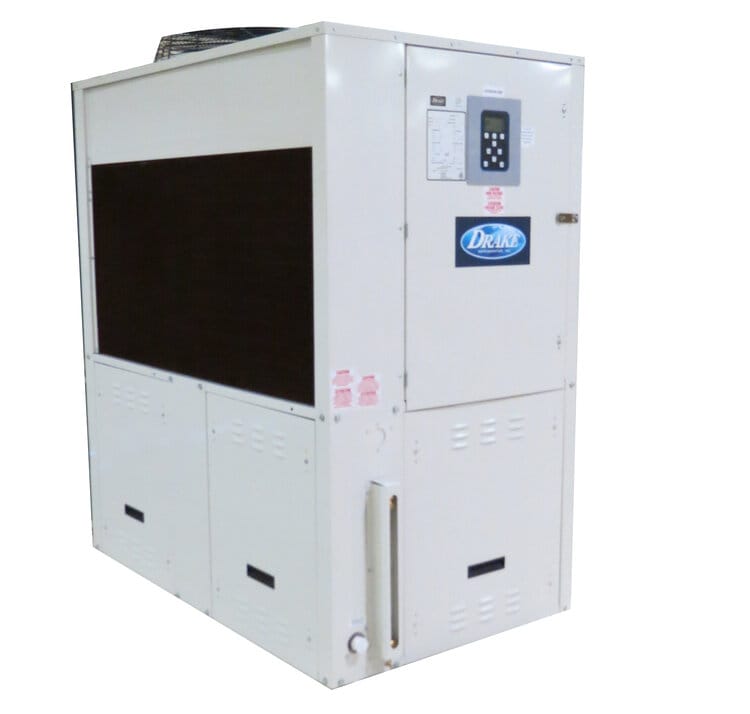

PACT36S3-T4-ZH

High Ambient comfort cooling chiller

PAC250M3-S2-Z

Custom High Altitude Single Phase chiller

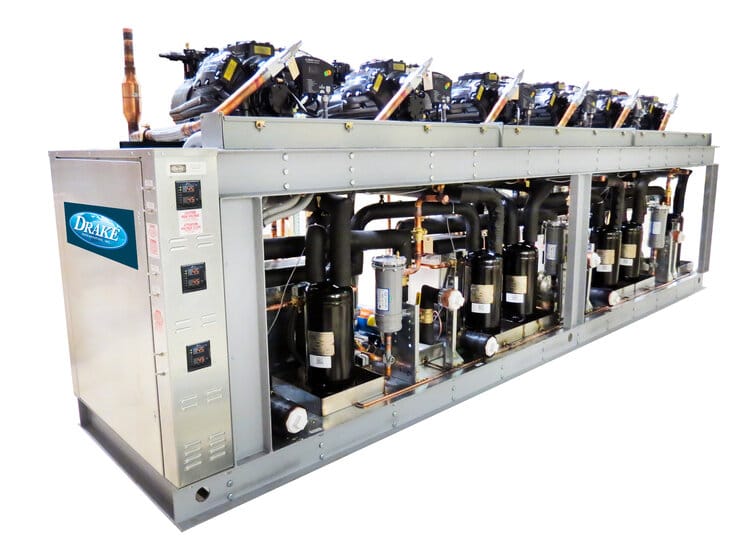

PWC1800M3-T4-SS

Marine Application cooling chiller

Comfort cooling chiller options

Redundancy

Full capacity redundancy
Full electrical isolation
Dual or multi-circuit refrigeration chiller units
Auto-changeover redundant pumps

Heat exchanger and tank

On-board or remote tank & pump packages
Fluid level sight glass
Tank low-level indicator with alarm
VFD (Variable Frequency Drive) available for pumps
Custom tank fittings

Custom controls

Custom programming available for application control
MCS microcontroller upgrade available for tighter process control and remote login access
Central control for multiple units
On-board or remote touchscreen options
Email and text alerts available in case of an alarm

Low-temp water options

Evaporators and heat exchangers sized for specific fluid for each application
Liquid injection and compressor fans for compressor cooling
Oil management for compressor protection
Electronic expansion valves (EEVs) for tight superheat control
1″ insulation for heat gain resistance
Designs for fluid temperature pull down from higher temperatures
Pump selection specific to fluid type

Energy-efficiency options

EC condenser fan motors for energy savings and more stable refrigerant temperatures
Floating head pressure for extremely efficient chillers in environments below 95°F ambient
Heat reclaim options for hot water loop
Pump variable frequency drive (VFD) for minimal energy consumption

Additional customization options

Digital flow meters
Circuit breakers for electrical components
Low ambient protection
Phase monitor
Fused disconnect
Corrosion resistance options
Custom sizes and dimensions

Using our robust custom-capable lineup of comfort cooling chillers, our advanced engineering team can incorporate even more options for optimal performance and control.

Support & Manuals

Customize your own chiller

Why Choose Drake Wine Chillers?

Benefits of Drake comfort cooling chillers

Year-round cooling

With low ambient protection, our comfort cooling chillers will perform optimally all year round. Options such as flooded condensers with head pressure control, heated flooded condensers with head pressure control, and evaporator heat tape keep your chiller going strong, even in areas that generate heat in the winter.

Excellent performance in coastal or harsh environments

If your residential or commercial property is in a coastal or harsh environment, our comfort cooling chillers stand out from others on the market. Custom condensers protect against the harsh salt air, and stainless-steel cabinets are available for extreme conditions. Condenser options in these environments include Heresite coating, gold fins, and copper fins.

High ambient temperature- and high altitude-friendly

Properties located in areas with high ambient temperatures or high altitudes can benefit from our comfort cooling chillers. We offer over-sized condensers designed for lower air density and higher ambient temperatures designed for maximum chiller performance.

More options than other comfort cooling chillers

We are proud to offer specialized options that you cannot find in other comfort cooling chillers. From custom sizes and custom dimensions to low ambient protection and redundancy options, we are your source for comfort cooling chillers that are engineered just for you.

How to choose a comfort cooling chiller company

Not all comfort cooling chiller companies are equal. To align with trusted expertise, look for a partner with:

Many years of experience

It takes time to develop the innovative engineering and design experience to deliver customized high-performance comfort cooling chillers, so ensure the company you choose has plenty of experience under its belt.

High uptime rate

Ask the comfort cooling chiller company you’re considering about their uptime rate. Look for one that’s as close to 100% as possible to ensure your comfort cooler is designed for longevity.

Engineered solutions

The more ways you can customize your comfort cooling chillers, the better it will meet your needs. Ensure the company you’re considering excels at engineered solutions for your application and budget.

Short lead times

Quick turnarounds mean everything. Ask the comfort cooling chiller company how long it will take to deliver your system – the faster, the better.

Reliable service and support

Customer service shouldn’t stop after the transaction is done. Ensure your comfort cooling chiller company has customer and technical assistance to illustrate a commitment to stand behind their product.

Affordable solutions

Ensure you’re not paying too much for a comfort cooling chiller! Look for a company that offers customized solutions – without the custom price tag.
